Access to Nodeum Container

How to access to Nodeum's Containers from Windows, MacOS and Linux

Nodeum Containers is available for accessing data using the workflow Data Archiving.

it is a virtual file system containing a complete file(s) and folder(s) structure. The file system used an internal cache system and is extended with secondary storage volumes.

The solution supports the following protocols :

and Operating Systems :

Windows 7, 8, 10 and 11
MacOS
Linux

Container Access through SMB

Windows based Operating System

Go through the command line and type the command to access Network File Explorer : \\nodeumhostname\
In this screenshot, "nodeum-prod.mt-c.local" is the hostname.

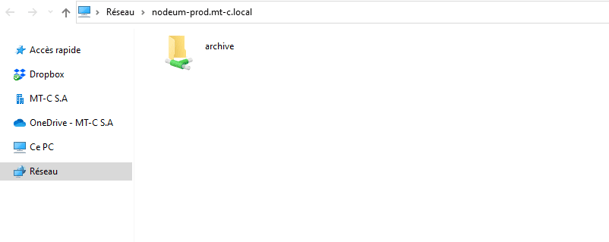

You will then see the list of container available into your Nodeum. In this example, "archive" is a valid defined container. Then click on the icon to access it.

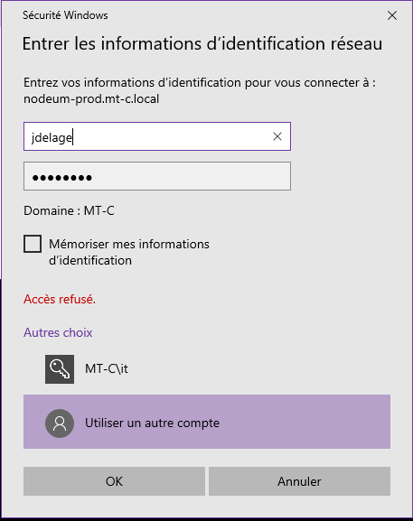

If you have configured Nodeum with Active Directory, this windows will not appear ; if you have configured Nodeum with local user account, you will have to use your Nodeum's local user name and password to access the Container.

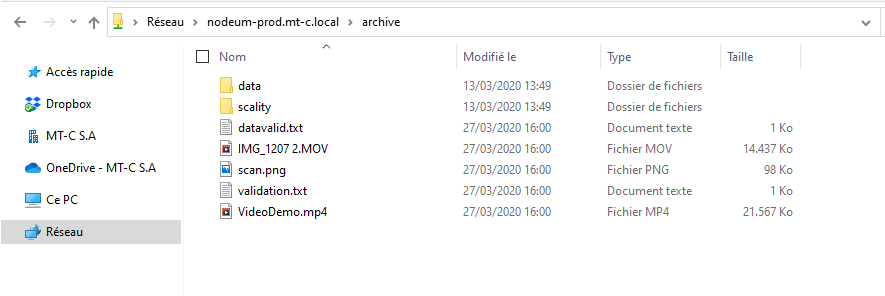

Once autorized, the you will see the contents available in the container as a normal Network Shared Folder.

MacOS based Operating System

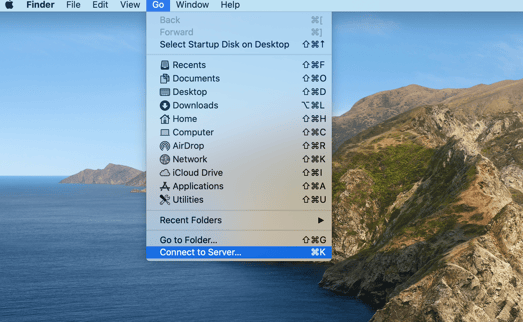

Access the Go menu in the top bar of your MacOS and go to "Connect to Server" option.

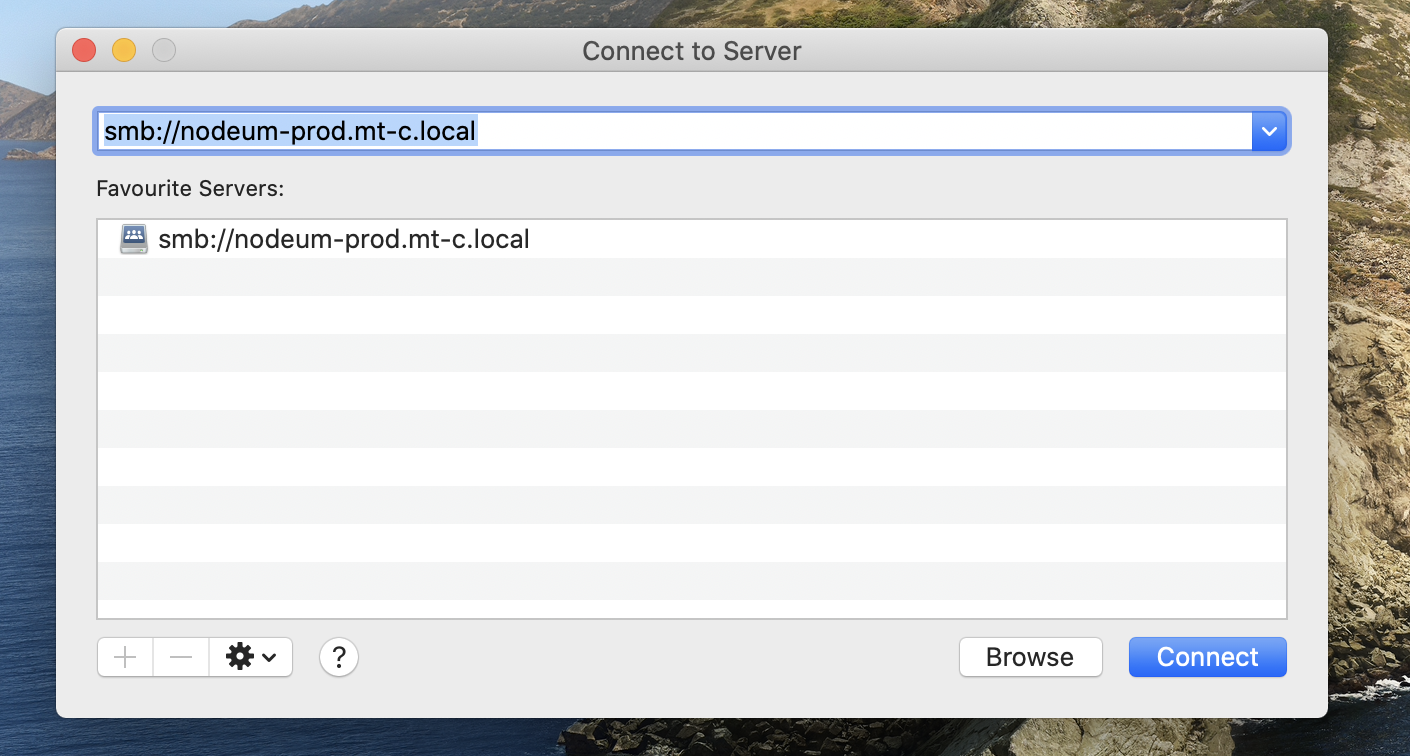

Then you type into the address list, the Nodeum hostname, such as smb://nodeumhostname, and click on "Connect" button :

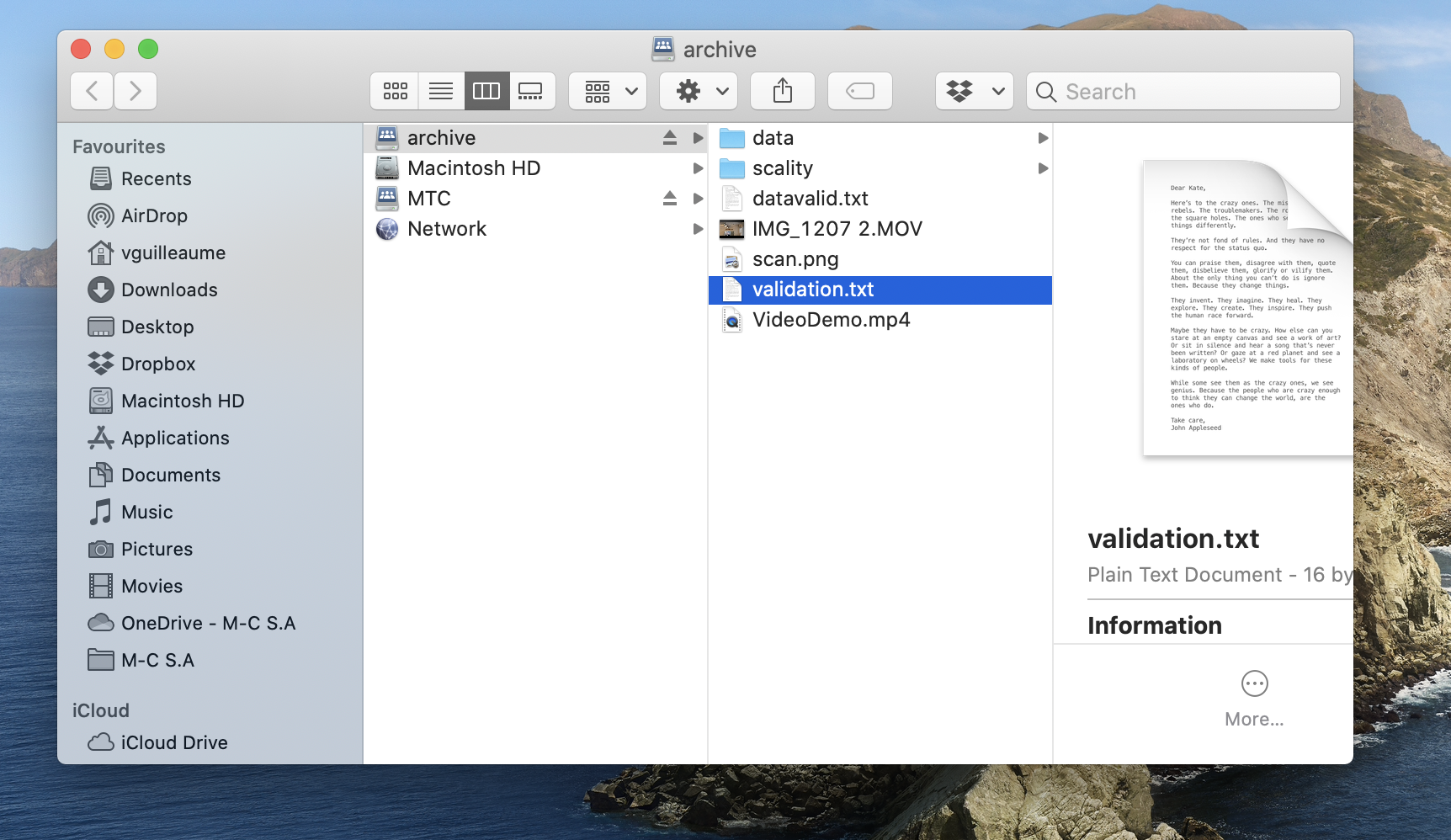

If credentials are well set, you can then access the contents of the Network Shared Folder :

Linux based Operating System

In your Linux terminal, mount the container (named archive in the example) in using SMB protocol. Verify that you have the right package installed :
```
# sudo yum install cifs-utils
# sudo mount.cifs //nodeum-prod.mt-c.local/archive /mnt/testmnt -o user=johndoe,pass="secret"
```
In this example:
nodeum-prod.mt-c.local : hostname of server
/archive : Container name into Nodeum
/mnt/testmnt : access point in your linux system. In the best practice, the name "testmnt" must be choosen according the container name.
-o user=johndoe,pass="secret" : johndoe is a user who have access to the container and "secret" is the password of the user.
It is also possible to add this mount point in /etc/fstab to have the volume mounted automatically at each reboot:
```
...
//nodeum-prod.mt-c.local/archive /mnt/testmnt cifs credentials=johndoe 0 0
...
```
Container Access through NFS

Linux based Operating System
In your Linux terminal, mount the container (named archive in the example) in using the NFS protocol. Verify that you have the right package installed :
```
# sudo yum install nfs-utils nfs-utils-lib
# sudo mount -t nfs -o vers=4 nodeum-prod.mt-c.local:/archive /mnt/testmnt
```
It is also possible to add this mount point in /etc/fstab to have the volume mounted automatically at each reboot:
```
...
nodeum-prod.mt-c.local:/archive /mnt/testmnt/ nfs rw,sync,hard,intr 0 0
...
```
PERFORMANCE OPTIMIZATION

Linux Operating system

To improve the reading and writing of file throughout the file system, we recommend to apply specific mount options. These configurations are related to the network interface throughput capabilities.

Example for 1Gbits/s ethernet connections:
```
# mount -t nfs -o vers=3,tcp,hard,intr,rwsize=32768 1.2.3.4:/ifs /mnt
```
Example for 10Gbits/s ethernet connections:
```
# mount -t nfs -o vers=3,tcp,hard,intr,rsize=131072,wsize=524288 1.2.3.4:/ifs/mnt
```
MacOS based Operating System

To improve the reading and writing of file throughout the file system, we recommend to apply specific mount options. These configurations are related to the network interface throughput capabilities.

Example for 1Gbits/s ethernet connections:
```
# mount -o vers=3,tcp,hard,intr,rwsize=32768 1.2.3.4:/ifs /mnt
```
Example for 10Gbits/s ethernet connections:
```
# mount -o vers=3,tcp,hard,intr,rsize=131072,wsize=524288 1.2.3.4:/ifs/mnt
```
REMARKS : NFS v3 - NFSv4 path definition

Target configuration is not the same for NFS v3 and NFS v4.
For NFS3 : the target must be configured in using absolute path

For NFS4 : the target must be configured in using relative path
Have a look into this example to better understand the difference.
On the Server side

In the server, the data that will be mounted are stored into /mnt/data/folder1
```
# ls /mnt/data/ -l
drwxr----- 2 root root 6 Jul  5 09:17 folder1
#
```
On the Client side using NFS v3
# mount.nfs hostname:/mnt/data/folder1 /mnt/data -v

We can see that the volume mounted is defined with an absolute path: /mnt/data/folder1

On the Client side using NFS v4
```
 # mount.nfs hostname:/folder1 /mnt/data -v
```
We can see that the volume mounted is defined with a relative path: /folder1

Container Access through S3

Different S3 clients are available to connect to a S3 bucket, we will use in this example rclone. We assume that a stable version of rclone is installed correctly. rclone is easy to install and is compatible with different operating systems : Windows, Linux or MacOS. rclone configuration is based on a config file which contains all informations related to the different endpoints available.

Rclone Config File
```
[nodeum]
type = s3
access_key_id = xxxx
secret_access_key = xxxx
endpoint = http://nodeum.mt-c.local:9000
```
List all directories/containers/buckets in the path
```
C:\Program Files\rclone>rclone lsd nodeum:
-1 2021-11-04 14:42:42 -1 emptycontainer
C:\Program Files\rclone>
```
List all contents and directories in the path
```
C:\Program Files\rclone>rclone ls nodeum:emptycontainer
31373 items.png
2162147328 linux-20.2-64bit.iso
8508953 tn5250j-0.8.0-beta2.zip
C:\Program Files\rclone>
```
Copy contents to a Nodeum Container
```
rclone copy "C:\Users\JohnDoo\Downloads\linux-20.2-64bit.iso" nodeum:/emptycontainer --no-check-dest --s3-no-check-bucket
```
Copy contents from a Nodeum Container
```
rclone copy nodeum:/emptycontainer "C:\Users\JohnDoo\Downloads\linux-20.2-64bit.iso" --no-check-dest --s3-no-check-bucket
```
Specific Parameters

--no-check-dest : (optional) - recopy all contents even if already exst at destination
--s3-no-check-bucket : (mandatory) - do not do an auto creation of the buck
